N210 USRPs - Example Experiment

N210 USRPs - Example Experiment

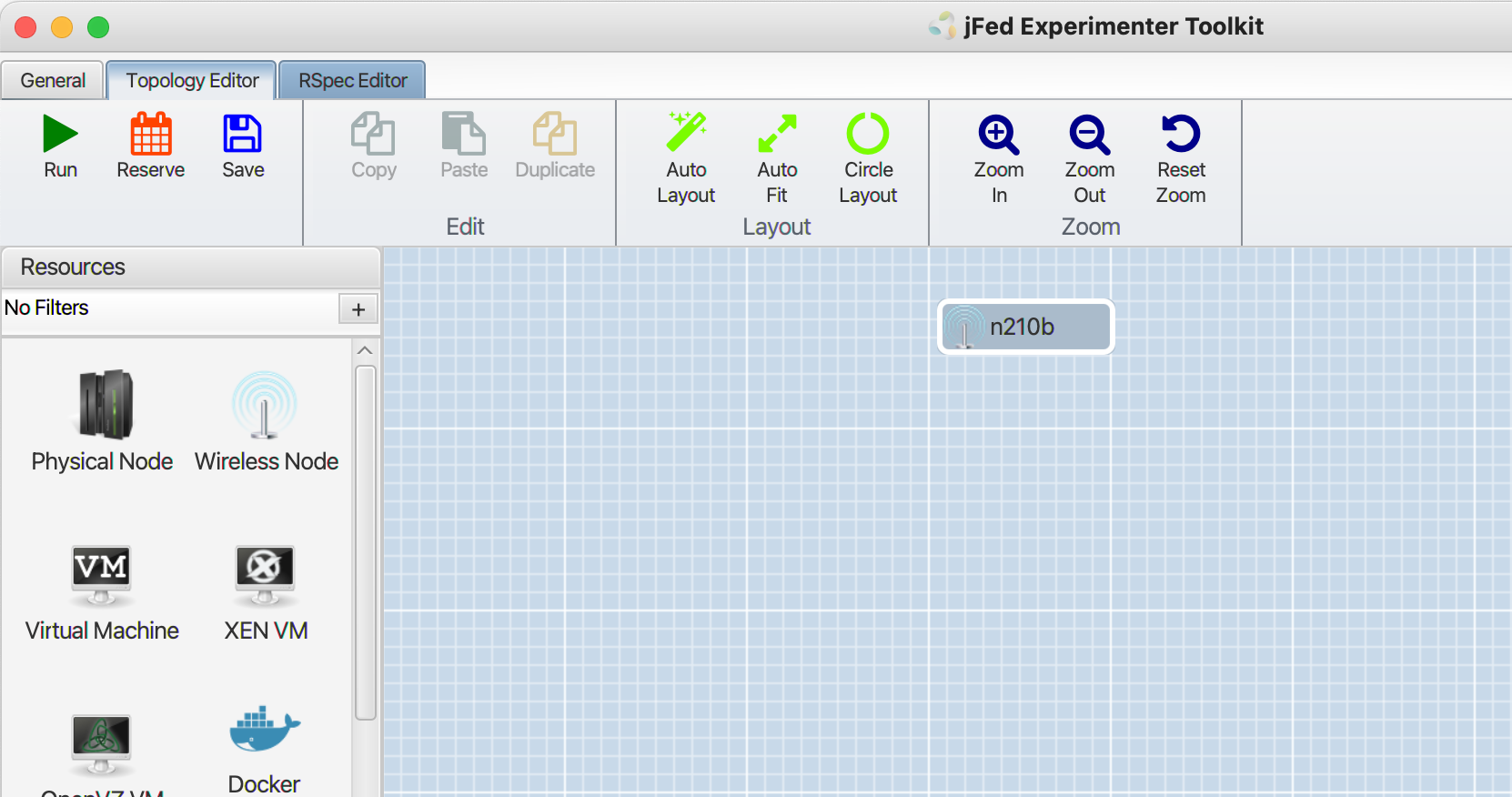

This is an example experiment for instantiating N210 USRPs supported by the OpenIreland API

<?xml version='1.0'?>
<rspec xmlns="http://www.geni.net/resources/rspec/3" type="request" generated_by="jFed RSpec Editor" generated="2022-12-20T18:05:48.291Z" xmlns:emulab="http://www.protogeni.net/resources/rspec/ext/emulab/1" xmlns:jfedBonfire="http://jfed.iminds.be/rspec/ext/jfed-bonfire/1" xmlns:delay="http://www.protogeni.net/resources/rspec/ext/delay/1" xmlns:jfed-command="http://jfed.iminds.be/rspec/ext/jfed-command/1" xmlns:client="http://www.protogeni.net/resources/rspec/ext/client/1" xmlns:jfed-ssh-keys="http://jfed.iminds.be/rspec/ext/jfed-ssh-keys/1" xmlns:jfed="http://jfed.iminds.be/rspec/ext/jfed/1" xmlns:sharedvlan="http://www.protogeni.net/resources/rspec/ext/shared-vlan/1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.geni.net/resources/rspec/3 http://www.geni.net/resources/rspec/3/request.xsd ">
  <node client_id="n210" exclusive="true" component_manager_id="urn:publicid:IDN+iris-open-testbed.connectcentre.ie+authority+am" component_id="urn:publicid:IDN+iris-open-testbed.connectcentre.ie+node+n210-10.55.24.0">
    <sliver_type name="vm-m1.n210.medium">
      <disk_image name="urn:publicid:IDN+iris-open-testbed.connectcentre.ie+image+jammy"/>
    </sliver_type>
    <location xmlns="http://jfed.iminds.be/rspec/ext/jfed/1" x="75.0" y="25.0"/>
    <interface client_id="n210:ens3">
      <ip address="provider3" type="ipv4"/>
    </interface>
  </node>
</rspec>


Run the Experiment

The latest version of Ubuntu is used, downloaded nightly

To view the USRPs run the following commands

sudo apt-get update
sudo apt install net-tools -y
sudo apt-get install libuhd-dev uhd-host -y

Benchmark test the USRP.

cd /usr/lib/uhd/examples
./benchmark_rate --rx_rate 20e6 --tx_rate 20e6 --duration 30
##You should see output as follows:
Benchmark rate summary:
Num received samples: 302084340
Num dropped samples: 0
Num overruns detected: 0
Num transmitted samples: 308295260
Num sequence errors (Tx): 0
Num sequence errors (Rx): 0
Num underruns detected: 0
Num late commands: 0
Num timeouts (Tx): 0
Num timeouts (Rx): 0

For USRP - VM performance trips check out the following link. This might be necessary if the benchmark tests fail.

https://kb.ettus.com/USRP_Host_Performance_Tuning_Tips_and_Tricks

Reference

N210 USRPs attached to Switch + port 22 Dec 2022

USRP Name Cable Colour Cable Number Dell Switch Port OI - IP Address
N210_Sandbox_4 N210_D1_2 Orange 16 48 10.55.41.2
N210_Sandbox_4 N210_D1_1 White 13 33 10.55.40.2
N210_C1_1 Orange 12 47 10.55.25.2
N210_C1_2 White 14 10.55.26.2
N210_C23_1 orange 11 46 10.55.27.2
N210_C23_2 white 22 34 10.55.28.2
N210_sandbox_5 (N210_c34_1) white 26 10.55.30.2
N210_sandbox_5 (N210_c34_2) orange 9 45 10.55.29.2
N210_b4_3 orange 5 44 10.55.42.2
N210_b4_4 white 27 10.55.50.2
N210_b23_4 white 23 36 10.55.51.2
N210_b23_3 orange 9 or 6 42 10.55.52.2
N210_b23_2 orange 7 43 10.55.53.2
N210_b23_1 white 19 10.55.54.2
N210_b12_1 orange 8 41 10.55.55.2
N210_a34_2 white 28 35 10.55.56.2
N210_a34_1 orange 4 40 10.55.57.2
N210_a23_4 orange 3 38 10.55.58.2
N210_a23_3 white 24 37 10.55.59.2
N210_sandbox_3 N210_a23_2 Orange 2 39 10.55.23.2
N210_sandbox_3 N210_a23_1 white 20 10.55.24.2
