FreeRouter - Tutorial 1

FreeRouter - Tutorial 1

References

https://docs.google.com/document/d/1GuLc0Nf7UbP1mGF6mNKsY4QcyhE0VOsNMimCkfo3xaM/edit

https://freerouting.org/freerouting/manual/routing-options

http://docs.freertr.org/

http://docs.freertr.org/guides/getting-started/001-hello-world/

jFed

This software is built to make it very easy for experimenters to provision machines and networks, while on the other side, it also has a lot of functionality for doing advanced experimentation.Using jFed experimenter software, you can use the Open Ireland testbed. Download and register for jfed using the following information.

Jfed Download link:

https://jfed.ilabt.imec.be/releases/develop/?C=N;O=D
You can register to join the jfed rare project here.

https://portal.fed4fire.eu/invite/rare

Load the following jFed RSPEC File.

<?xml version='1.0'?>
<rspec xmlns="http://www.geni.net/resources/rspec/3" type="request" generated_by="jFed RSpec Editor" generated="2022-09-27T13:50:57.411+01:00" xmlns:emulab="http://www.protogeni.net/resources/rspec/ext/emulab/1" xmlns:jfedBonfire="http://jfed.iminds.be/rspec/ext/jfed-bonfire/1" xmlns:delay="http://www.protogeni.net/resources/rspec/ext/delay/1" xmlns:jfed-command="http://jfed.iminds.be/rspec/ext/jfed-command/1" xmlns:client="http://www.protogeni.net/resources/rspec/ext/client/1" xmlns:jfed-ssh-keys="http://jfed.iminds.be/rspec/ext/jfed-ssh-keys/1" xmlns:jfed="http://jfed.iminds.be/rspec/ext/jfed/1" xmlns:sharedvlan="http://www.protogeni.net/resources/rspec/ext/shared-vlan/1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.geni.net/resources/rspec/3 http://www.geni.net/resources/rspec/3/request.xsd ">
  <node client_id="free1" exclusive="true" component_manager_id="urn:publicid:IDN+iris-open-testbed.connectcentre.ie+authority+am">
    <sliver_type name="vm-bionic-flv">
      <disk_image name="urn:publicid:IDN+iris-open-testbed.connectcentre.ie+image+jammy"/>
    </sliver_type>
    <location xmlns="http://jfed.iminds.be/rspec/ext/jfed/1" x="75.0" y="25.0"/>
  </node>
</rspec>

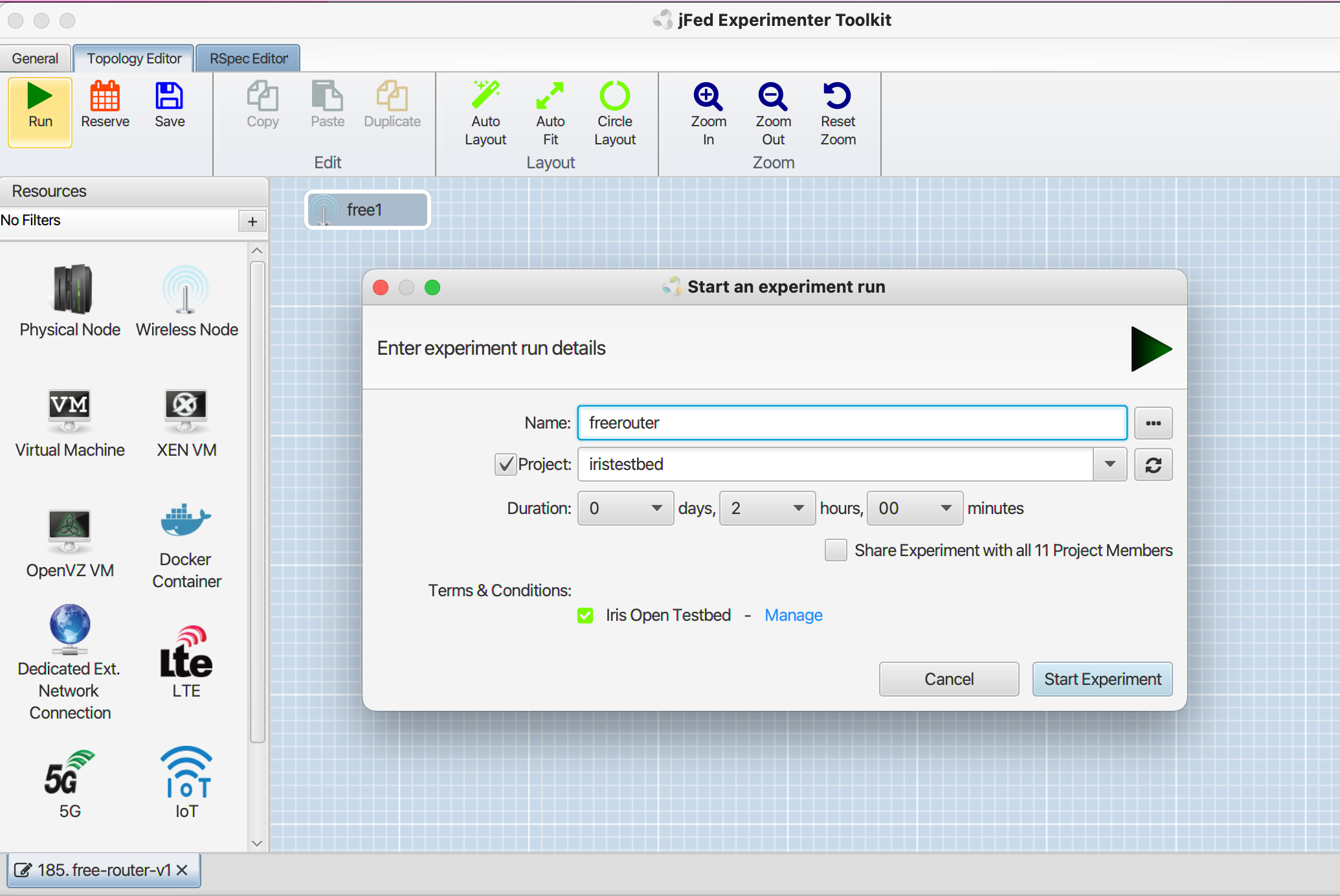

Start Experiment. Enter “project”, Experiment “name“, Accept the Terms and Conditions and then you can set desired period to run the experiment and proceed.

Start Project Image

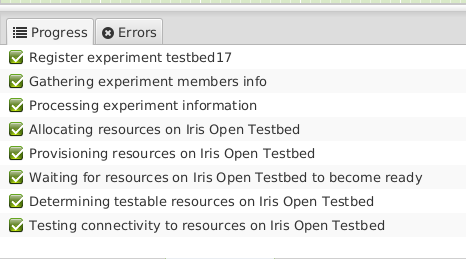

It is also vital to ensure zero error while running the test. If the experiment runs successfully, you can now start installing FreeRtr on the local machine.

Install FreeRtr

sudo apt-get install default-jre-headless --no-install-recommends

The freeRouter homepage is at http://freertr.net . Starting from this page, you'll find various resources such as source code (there is also a GitHub mirror), binaries, and other images that might be of your interest. From there, we just download the freeRouter jar files.

wget freertr.net/rtr.jar

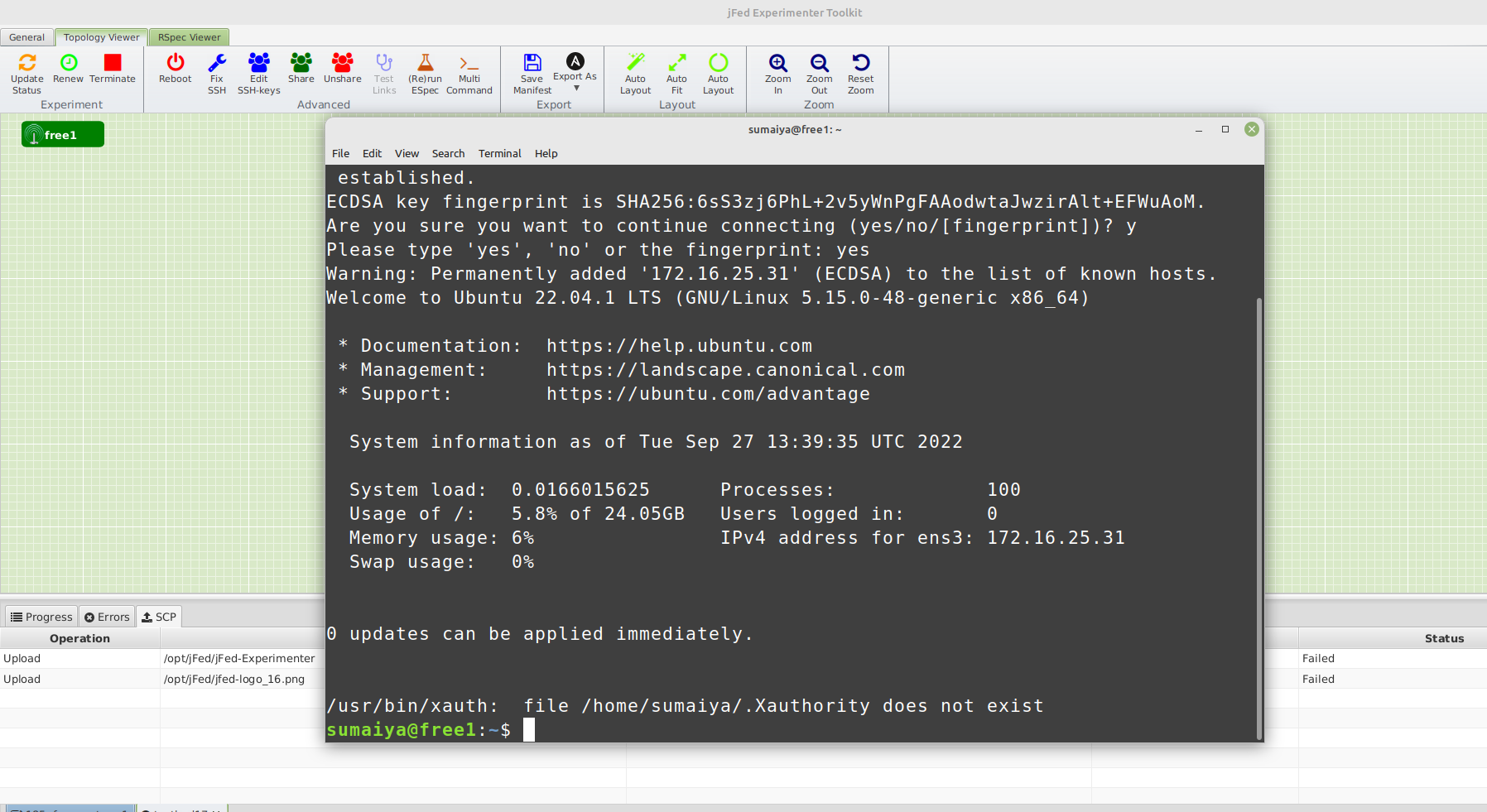

Open the ssh terminal by clicking the node for configuration.


Configuration

Two files need to be edited to run the experiment successfully.

  • A hardware definition file
  • A software configuration file

Hardware Router1

This file includes the definition of the router:

  • Platform information
  • Interfaces definition
  • External port translation to freeRtr port namespace
  • External process launched and watched by freeRtr

Let's give it the name $hostname-hw.txt

  • The router we will create is r1, so the hardware file is:r1-hw.txt
  • Use Vi/vim to edit/add/remove any information of the configuration file.

The format of interface declaration is:

int

tcp2vrf

int eth1 eth 0000.1111.0001 127.0.0.1 26011 127.0.0.1 26021
tcp2vrf 1123 v1 23

Software  Router1

Create another file for the software part of the router. Let's give it the name $hostname-sw.txt

  • Hostname, ethernet, or should be declared in this file.

freeRouter software configuration file: vi/vm r1-sw.txt

hostname r1
!
vrf definition v1
 exit
!
int eth1
 exit
!
server telnet tel
 security protocol telnet
 no exec authorization
 no login authentication
 vrf v1
 exit
!

Hardware Router2

freeRouter hardware file: r2-hw.txt

int eth1 eth 0000.2222.0001 127.0.0.1 26021 127.0.0.1 26011
tcp2vrf 2223 v1 23

Software  Router2

freeRouter software configuration file: r2-sw.txt

hostname r2
!
vrf definition v1
 exit
!
int eth1
vrf forwarding v1
exit
!
server telnet tel
 security protocol telnet
 no exec authorization
 no login authentication
 vrf v1
 exit
!

Let’s start the process

Launch freeRouters R1 & R2

For this, you need to open a total of two pairs of ssh terminals—one pair for router one and the other for router 2. You can start with checking the parameters by these commands

java -jar /rtr/rtr.jar
java -jar /rtr/rtr.jar <parameters>
parameters:
  router <cfg>            - start router background, config url
  routerc <cfg>           - start router with console, config url
  routerw <cfg>           - start router with window, config url
  routercw <cfg>          - start router with console and window, config url
  routers <hwcfg> <swcfg> - start router from separate configs, config url, config url
  routera <swcfg>         - start router with sw config only, config url
  test <cmd>              - execute test command, command to execute
  show <cmd>              - execute show command, command to execute
  exec <cmd>              - execute exec command, command to execute

R1 launch with supplied r1-hw.txt and r1-sw.txt with a console prompt

#java -jar <path>/rtr.jar routersc <path>/r1-hw.txt <path>/r1-sw.txt


Let’s do this again in another terminal for router 2…

R2 launch with supplied r2-hw.txt and r2-sw.txt with a console prompt

#java -jar <path>/rtr.jar routersc <path>/r2-hw.txt <path>/r2-sw.txt

after this, you should see the same welcome page, which indicates you are ready for the next steps! Now you can open two terminals to telnet access from the specific ports of router1 and router2.

R1 telnet access from port 1123

#telnet localhost 1123

R2 telnet access from port 2223

#telnet localhost 2223

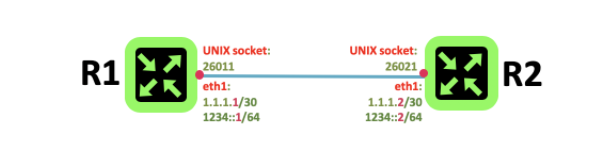

R1 &R2 running configuration

r1#?
r1#conf t
r1(cfg)#hostname r1
r1(cfg)#int ethernet1
r1(cfg-if)#vrf forwarding v1
r1(cfg-if)#ipv4 address 1.1.1.1 255.255.255.252
r1(cfg-if)#ipv6 address 1234::1 ffff:ffff:ffff:ffff::
r1(cfg-if)#desc r1@e1 -> r2@e1
r1(cfg-if)#no shut
r1(cfg-if)#end
r1#sh run
r1#sh int

r2#conf t
r2(cfg)#hostname r2
r2(cfg)#int ethernet1
r2(cfg-if)#vrf forwarding v1
r2(cfg-if)#ipv4 address 1.1.1.2 255.255.255.252
r2(cfg-if)#ipv6 address 1234::2 ffff:ffff:ffff:ffff::
r2(cfg-if)#desc r2@e1 -> r1@e1
r2(cfg-if)#no shut
r2(cfg-if)#end
r2#sh run
r2#sh int

Connectivity test between R1 and R2 & R2 and R1

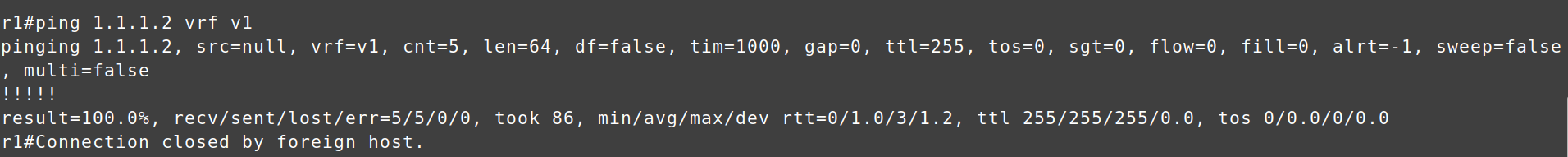

r1#ping 1.1.1.2 /vrf v1

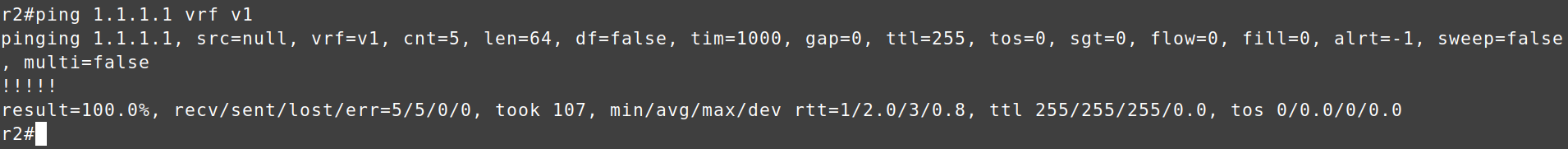

r2#ping 1.1.1.1 /vrf v1

Image Image

Congratulations! You have accomplished this experiment using native UNIX UDP socket forwarding! Let’s go to the next tutorial .

Troubleshooting

You can check whether a specific port is sending/receiving packets or not using this command-

sudo tcpdump -i any port 26011 <unix socket>

In this experiment, you tried to connect two routers and checked their connectivity. In order to accomplish this test, you needed to open multiple terminals, which could create confusion and increase the complexity of this simple experiment. In that case, tmux (terminal multiplexer) can be used which allows you to use multiple terminal windows in one place.
